Stealth micro perforated wood panel with solid wood appearance

Applications

  • Courtrooms and council chambers
  • Hotel lobbies and luxury suites
  • Corporate boardrooms and executive offices
  • University lecture halls and libraries
  • Healthcare reception areas and patient rooms
  • Performing arts centers
  • Museum galleries and exhibition spaces
  • Houses of worship
  • Open-plan offices
  • Government and civic buildings

Wood Species and Finishes

Multiple North American hardwood species available.

Product Description

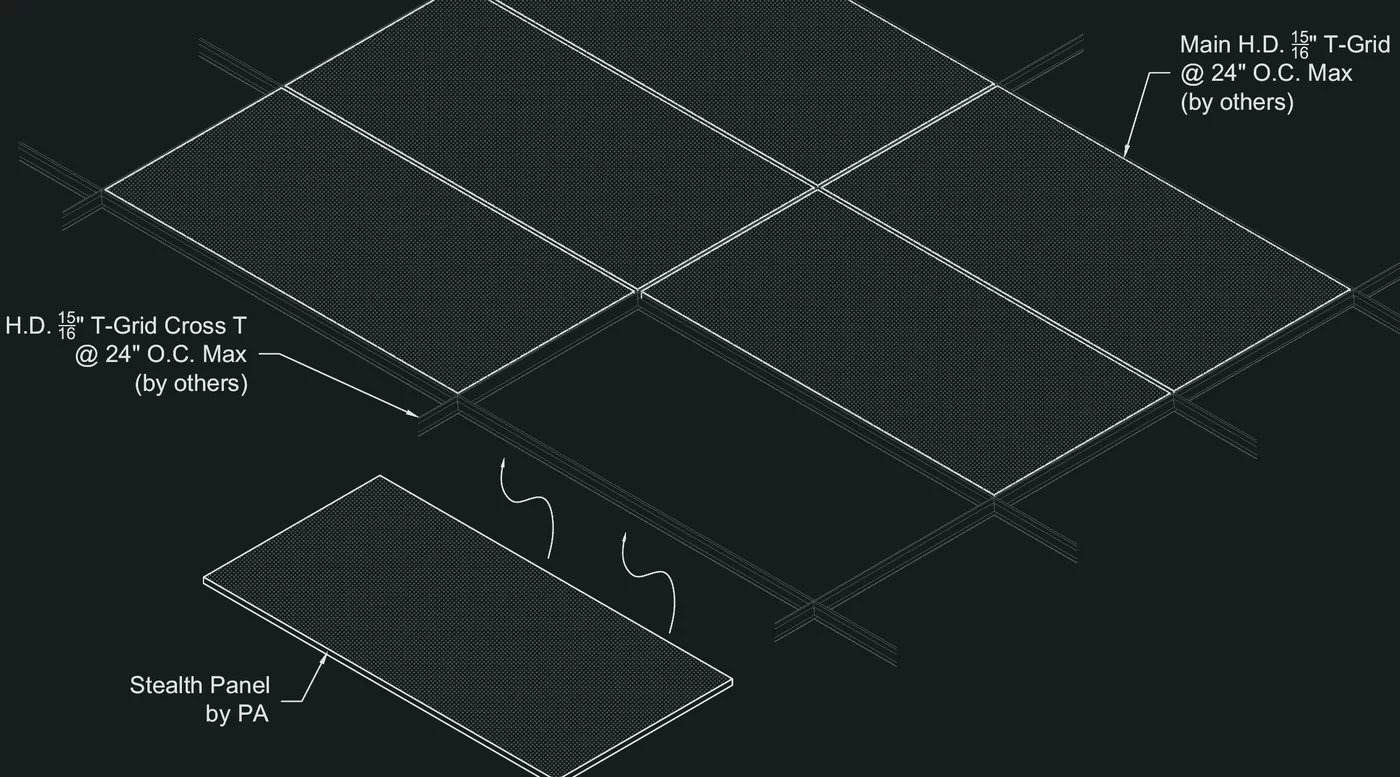

Isometric Panel Installation drawing from the Stealth-MP1-4x8 submittal
Isometric Panel InstallationDownload 3.0 MB

Micro-perforated panels work through a different mechanism than standard perforated products. Conventional perforations are large enough to see, typically 3mm to 10mm, and rely on the open area behind the hole for absorption. Micro-perforations are a fraction of that size. At this scale, sound energy is converted to heat through viscous friction as air molecules interact with the hole boundary.

The result is a panel that absorbs sound without any visible evidence of the perforations. From across the room, a Stealth panel is indistinguishable from solid wood paneling. Move closer and the perforations become barely detectable on close inspection, but they’re small enough that the wood grain reads as fully continuous and uninterrupted. Nothing about the surface says “acoustic treatment.” It reads as premium architectural millwork.

The surface absorbs light softly rather than reflecting it, giving the wood a warm, velvety visual quality. Acoustic performance is measurable and testable to ASTM C423.

Finish Engineering

The finish process is what makes micro-perforation work as a product. A matte finish is essential: any gloss or sheen would cause light to catch on the edges of the tiny holes, giving away the perforations. Penetrating stains and controlled application ensure that perforations remain acoustically active after finishing. A conventional spray finish would fill the holes and kill the absorption. Stealth panels use a finishing method engineered specifically for micro-perforated surfaces.

The perforation pattern, hole diameter, and backing material are selected based on the frequencies your space needs to absorb. Low-frequency control requires different backing than speech-range clarity. The full panel assembly is configured to your acoustic consultant's specifications.

Panel dimensions, perforation spacing, and hole diameter are all configurable. Ceiling, wall, and ceiling-to-wall transition installations use the same panel construction.

Product Documentation

Models and Data Sheets

ModelGroupSizeDownload
Stealth-MP1-4x8FP-13.0 MBDownload
Stealth-MP1-4x8FP-23.0 MBDownload
Stealth-MP1-4x4FP-32.9 MBDownload
Stealth-MP1-2x4FP-43.5 MBDownload
Stealth-MP1-2x4FP-54.3 MBDownload

Let's bring your design to life

Need acoustic performance without visible perforations? Send us your drawings and acoustic requirements for a detailed quote with panel specifications and lead times.
