Mach 4 - Flat Wood Ceiling Panels

Wood wall and ceiling system in an architectural project

Mach 4 – Flat Panels

Flat panels are the most common architectural wood ceiling. Real wood, flush to the ceiling plane, no visible mechanical systems. The look is clean. The engineering is straightforward.
Penner builds flat panels in three configurations within one product family:
Standard (Mach 4) is the solid wood surface. No perforations, no slots. Use it where absorption isn’t required or where a continuous wood plane is the priority.
Perforated (Mach 4.1) adds precision-drilled holes backed by acoustic fleece. Sound passes through the perforations and gets absorbed by the backing material. Hole diameter and spacing are configurable to hit your NRC target.
Slotted Acoustical (Mach 4.2) uses linear groove patterns on the face with backside perforations for higher NRC performance. The grooves add a textured look while the dual-mechanism construction (face slots plus back perforations) increases absorption beyond what either approach achieves alone.
Same core construction and attachment methods across configurations. Switching from standard to perforated doesn’t restart your timeline or change your install method.

Full Description & Specs

Documentations

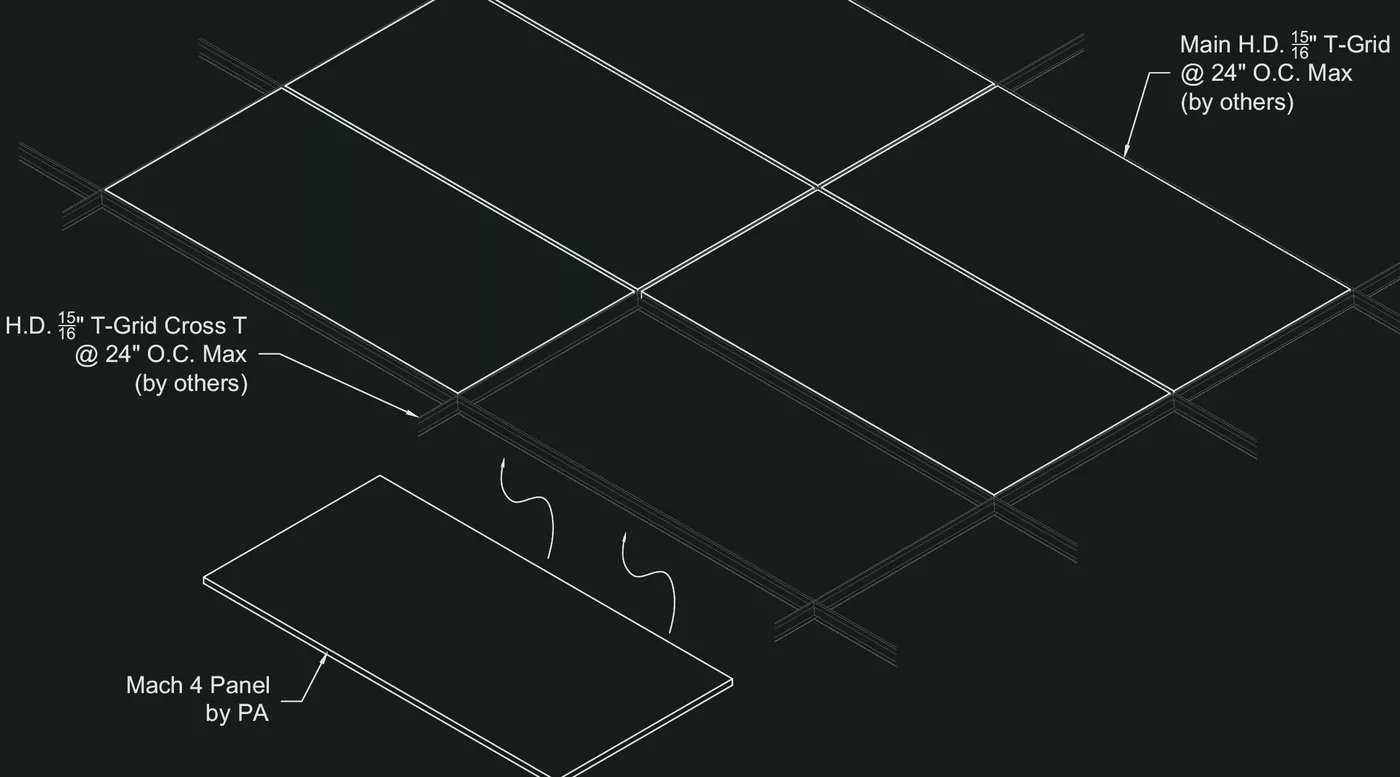

Panels lay into grid systems, clip to concealed rails, or screw to direct-mount substrates. Each panel arrives factory-finished with attachment hardware installed and configuration marked, so the installer isn’t making decisions in the field.

The same panel construction works on ceilings, walls, and transitions. One scope, one finish standard, even when the ceiling turns a corner and runs down the wall.

Lead time note: custom perforation patterns and non-standard panel sizes add 2-3 weeks beyond standard configurations.

Solid wood and veneer construction on fire-rated cores
Standard, perforated, and slotted acoustical configurations
Configurable perforation diameter, spacing, and pattern
Configurable slot width, groove profile, and spacing
Acoustic fleece backing on perforated and slotted variants
Multiple attachment methods (grid lay-in, concealed clip, direct mount)
Removable panels for plenum access
Accommodates integrated lighting and mechanical penetrations
Custom and standard panel sizes
Factory stain and finish with custom color matching
Fire rated (Class A)

Healthcare facilities and patient areas
Corporate offices and headquarters
Universities and lecture halls
Government and civic buildings
Hospitality lobbies and conference centers
Performing arts venues
Retail environments
High-end residential
Exterior soffits (standard configuration only)

Multiple North American hardwood species available. Every configuration can be stain matched to your project’s color palette. Finish is applied in controlled conditions so perforated, slotted, and standard panels installed side by side match in color and sheen.

Send us your drawings. We’ll recommend the right configuration and quote it with specs and lead times.
